MCT2RU

TV TRANSMITTERS – Multichannel MCT series

OVERVIEW

MCT Series Multichannel Transmitter/Re-Transmitter
Up to 7+1 channels
Built-in automatic changeover. 2 configurations: 4RU & 2 RU

• Models available:
– Transmitter with Satellite Receiver and Decoder
– Multi Input (ASI+ SAT) Transmitter Seamless Switching.
– Gap Filler with echo cancelling.

• Output power available: 2, 5 and 10W rms

• 2 hardware configurations available:

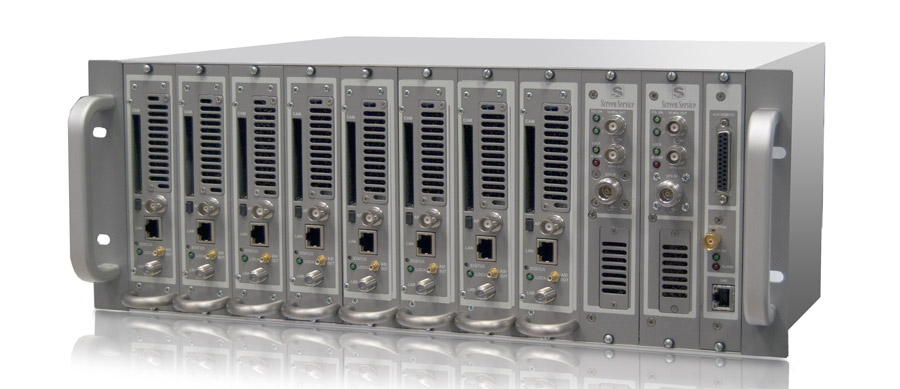

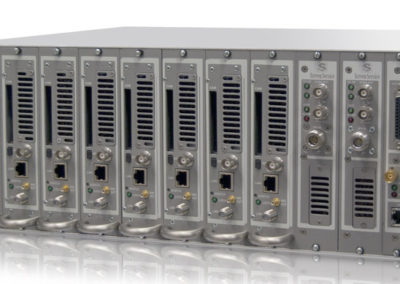

– 4 Rack Units: up to 7 x transmitters, 1 x Reserve, 2 x GPS Boards, 1 x Main Board

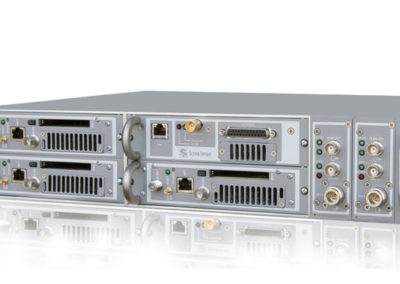

– 2 Rack Units: up to 2 x transmitters, 1 x Reserve, 2 x GPS Boards, 1 x Main Board

• Multiple RF channels: up to 7 channels can be frequency multiplexed to output.

• N+1 redundancy system with up to 7 main devices and 1 reserve.

• Full UHF Band, frequency range 470-860Mhz.

• Linear and Non Linear adaptive pre-correction with preloaded tables or graphical setting.

• GPS plug-in boards (redundancy as option). 1PPS and 10 MHz (for each GPS board).

• Redundant power supply (as option).
